JPM-S100 Automatic Paper Cup Forming Machine (70-100pcs/min)


Machine description:-

This type paper cup machine advantages:High Performance, High Efficiency , High Quality

1.20GP container can loading 6 sets,40HQ container can loading 12sets.Greatly reduce the transportation cost, is the ideal equipment for the production of small cup.

2.High production speed, making cup speed can be 70-100pcs/min, stable operation at 85pcs/min, cost-effective than similar products.

3. Aluminum disc indexing adopts open cam

Type: JPM-S100
Cup size: 3-9oz(different size mold exchanged)
Suitable paper materia: 150-350g/m2

(single or double PE-coated paper)

Capacity: 70-100pcs/min
Power source: 220V、380V 50HZ(please inform us your power in advanced)
power: 4KW
Weight: 1300KG
Package size: 2100 x 1100 x 1700 mm
Working Air Source: Air pressure 0.4Mpa;Air out-put:0.6m3/min

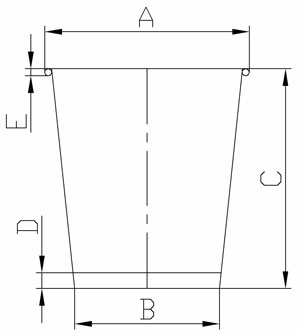

A:top diameter:

Min 30mm—Max 70mm

B:bottom diameter

Min 30mm—Max 58mm

C:total height

Min 30mm—Max 90mm

D:bottom knurling depth

Min 4mm—Max 7mm

E:rim diameter

Usually Φ2—Φ3
